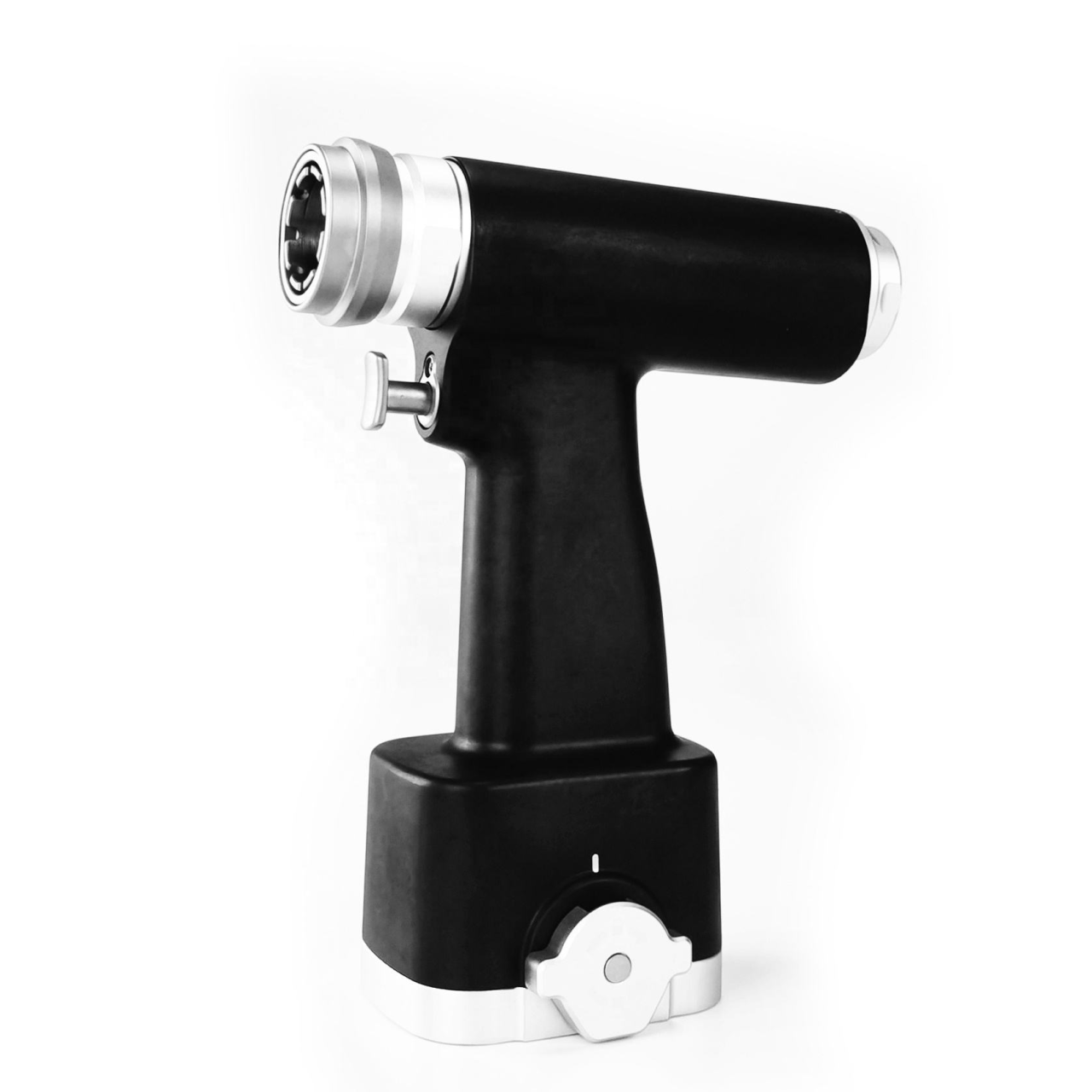

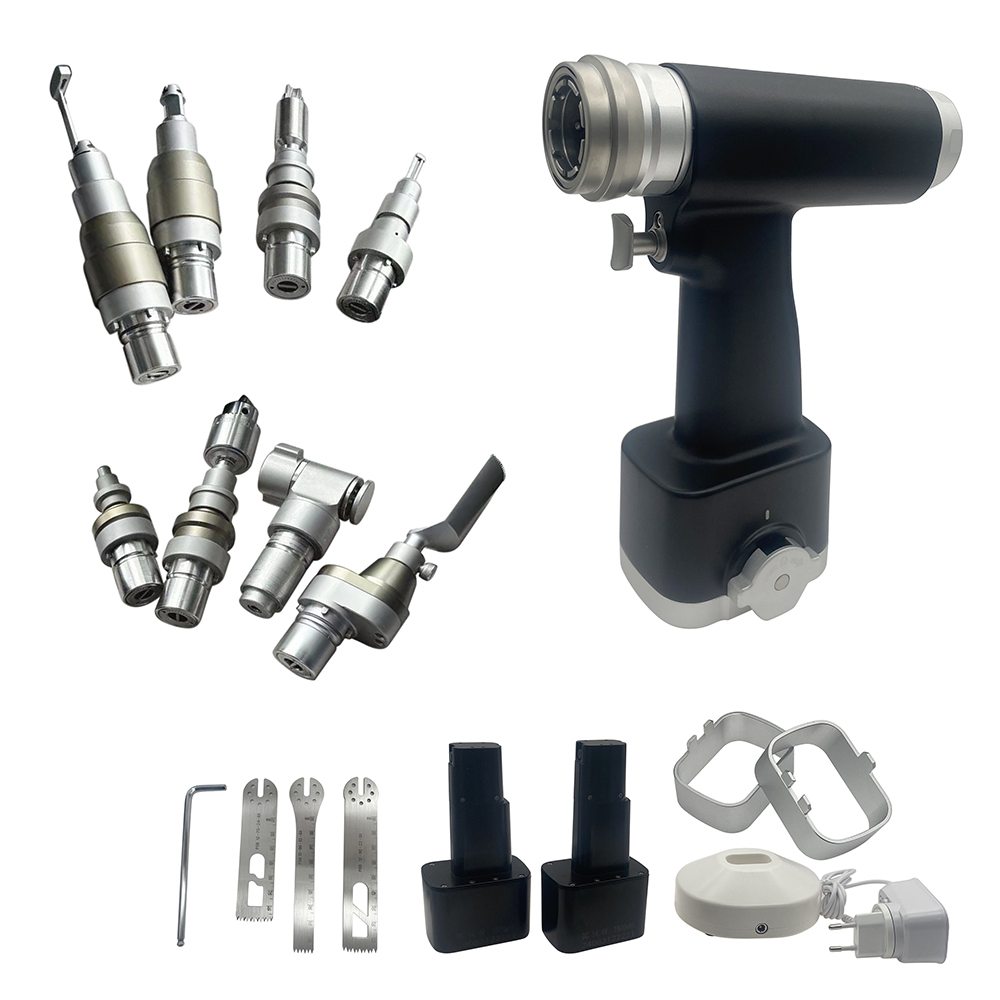

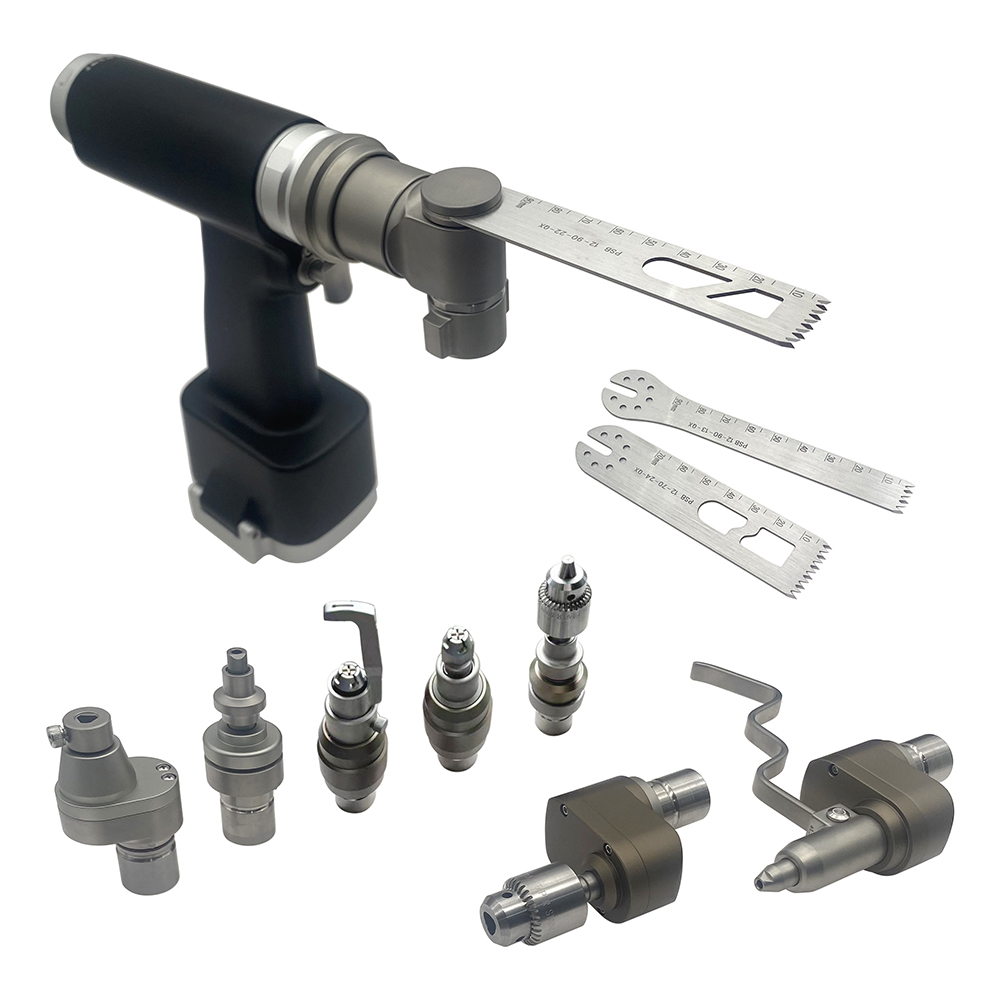

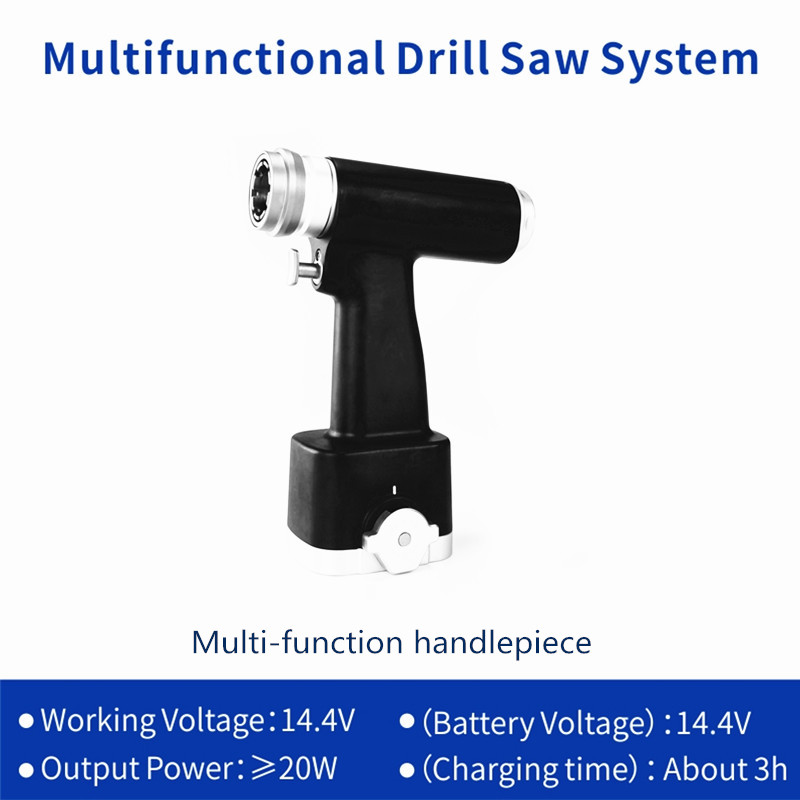

Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
1 / 5
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System
Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System

Multifunctional Orthopedic Electric Drill Orthopedic Bone Drill Surgical Bone Drill and Saw System

Send Inquiry

Product Description

Specification
Product: Medical surgical electric portable bone drill
Main Material: Aluminum Alloy
MOQ: 1 set
Application: Orthopedic Surgical Instruments
Bone drill speed: 0-1300 r/min
Cannulated drill speed: 0-600 r/min
Oscillating saw: 0-18000 osc/min
Acetabular bone drill: 0-300 r/min
Craniotomy drill: 0-900 r/min
Sternum saw: 0-15000 osc/min
Saw non-load noise: 75 dB
Drill non-load noise: 65 dB
Diameter run-out: 0.5 mm
Oscillations: 0-15000 r/min
⚠️ Note: Does not include any adapters.
Product Description
  • 1
    Certification CE, ISO & SGS Approved.
  • 2
    Stainless Steel Mainframe Highly durable with a long working lifetime. Accessories can be selected freely for different operations.
  • 3
    Quick Chuck Imported chuck ensures outstanding performance during clinical operations.
  • 4
    Sternum Saw Both the 360° rotating head and blade guard protect the soft tissue around the sternum.
  • 5
    Craniotomy Mill 40,000 r.p.m rates assure a fast, efficient, and safe process in craniotomy.
  • 6
    Oscillating Saw 360° rotating head can be applied to any surgical site. Wrenchless collect allows for easy, fast, and safe loading/unloading of blades.
  • 7
    Reamer High-torque performance, ideal for acetabulum or medullary operations. Available to all brands of universal mills.
  • 8
    Wire and Pin Chuck Cannula diameter of 4.0mm applied to various intramedullary pin or Kirschner pin fixing operations easily and conveniently.
  • 9
    Cranial Drill Auto-pause after perforation ensures absolute safety in neurosurgery.
  • 10
    Premium Quality Highest quality surgical instrument multifunctional bone drill saw system.
  • 11
    Ergonomic Design Perfect ergonomic engineering for comfortable and precise handling.
  • 12
    Versatile Surgery Support This medical instrument is designed to meet various surgical application demands.

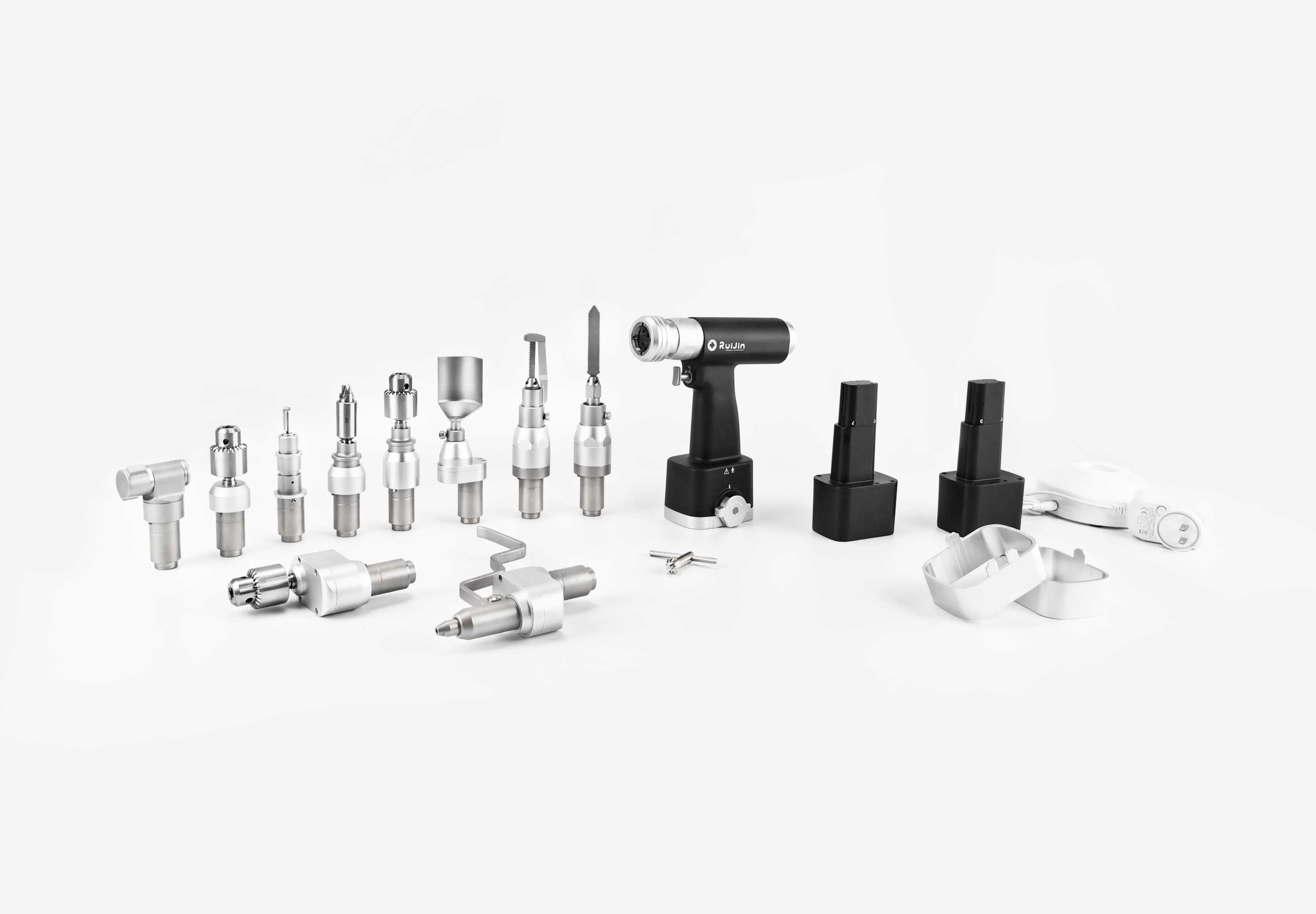

Surgical Bone Drill Component 1

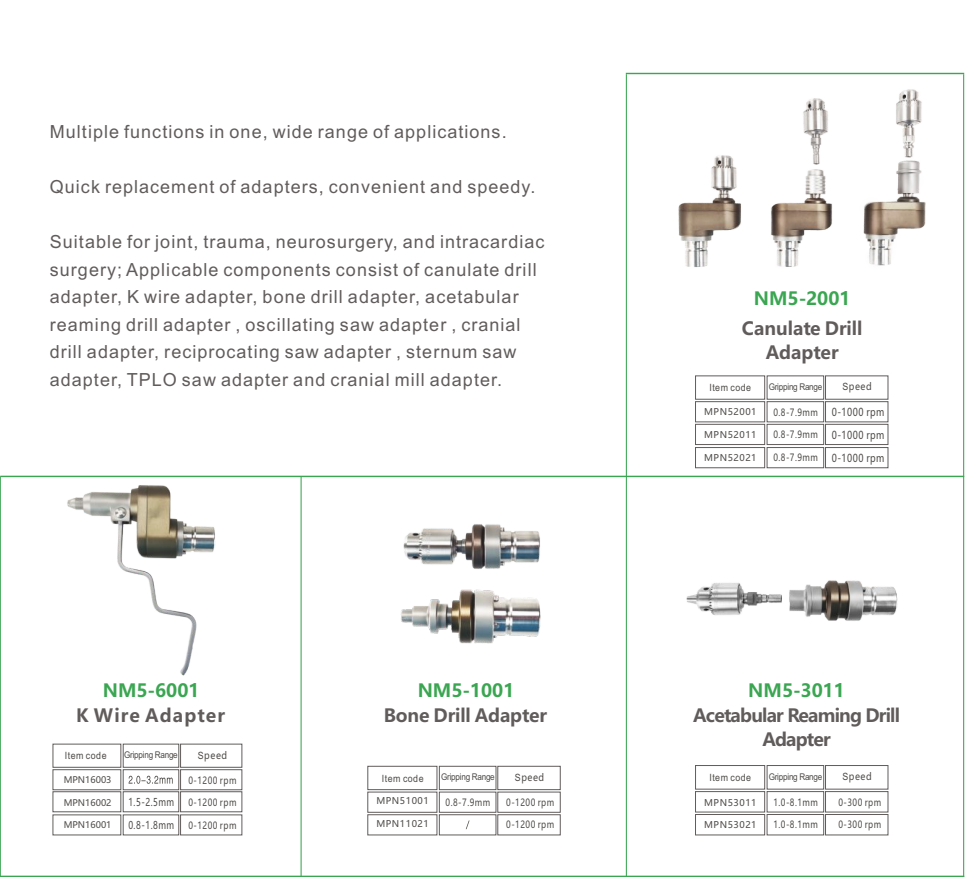

Surgical Bone Drill Component 2

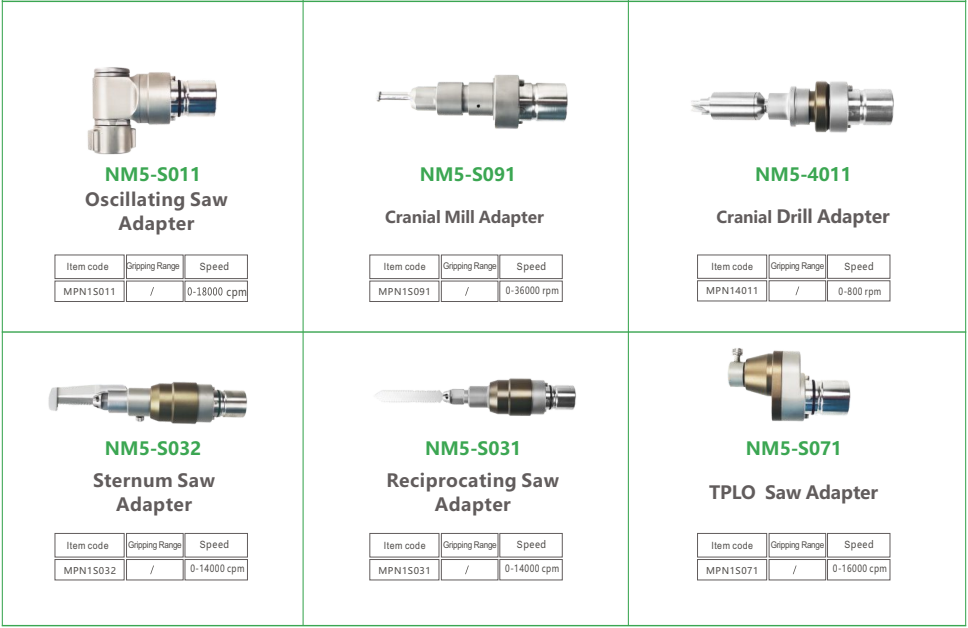

Surgical Bone Drill Component 3

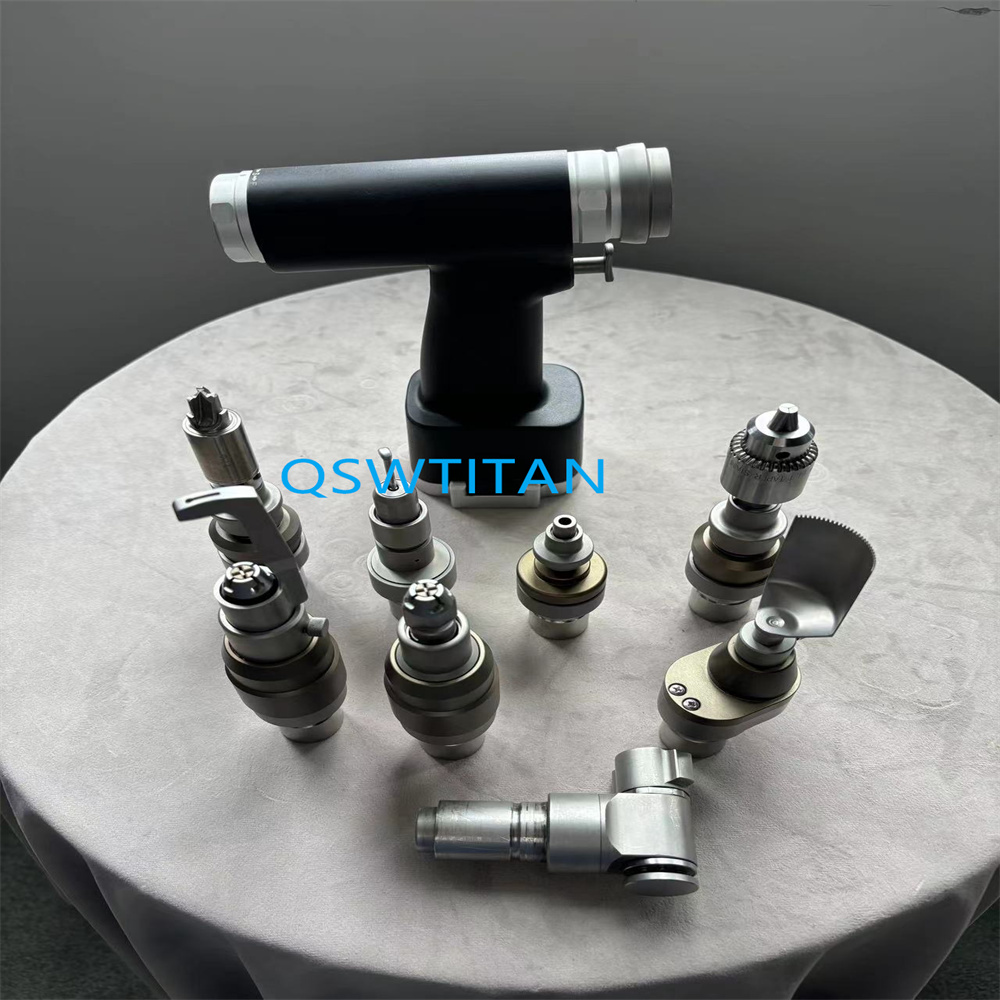

Surgical Bone Drill Component 4

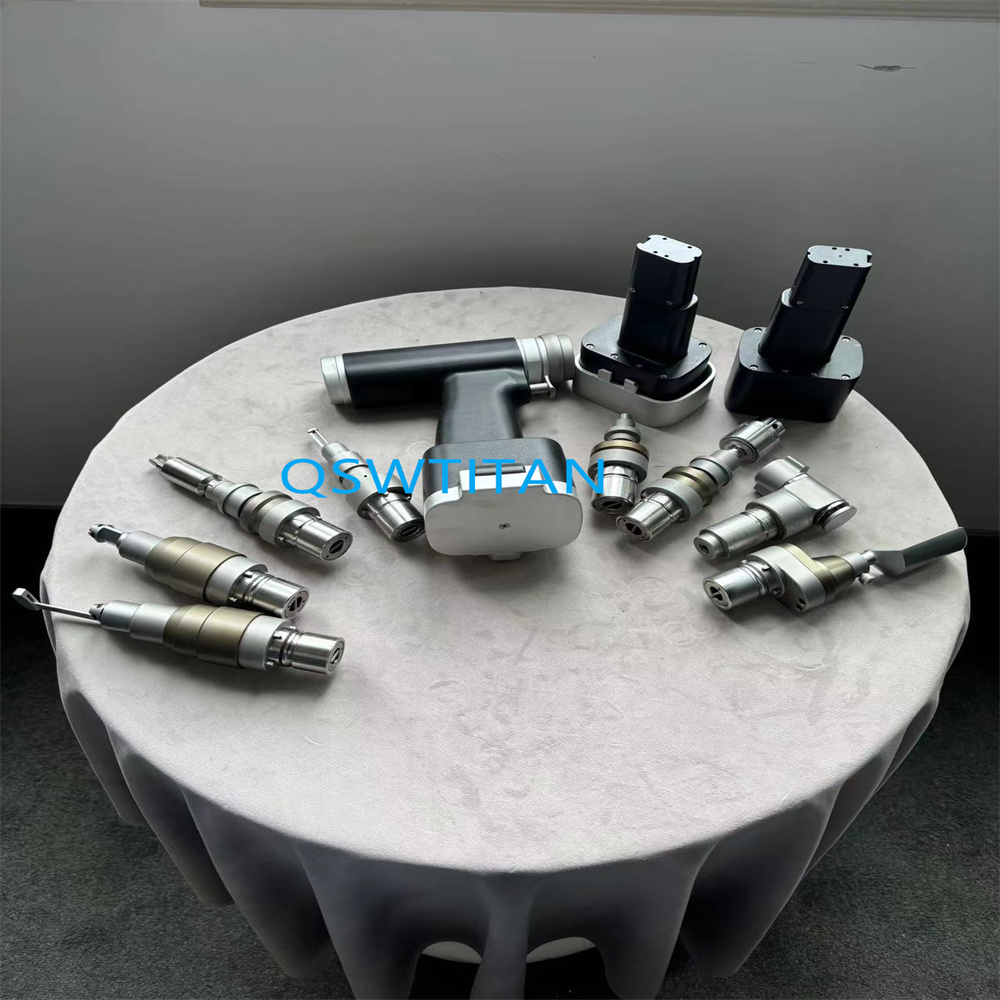

Surgical Bone Drill Component 5

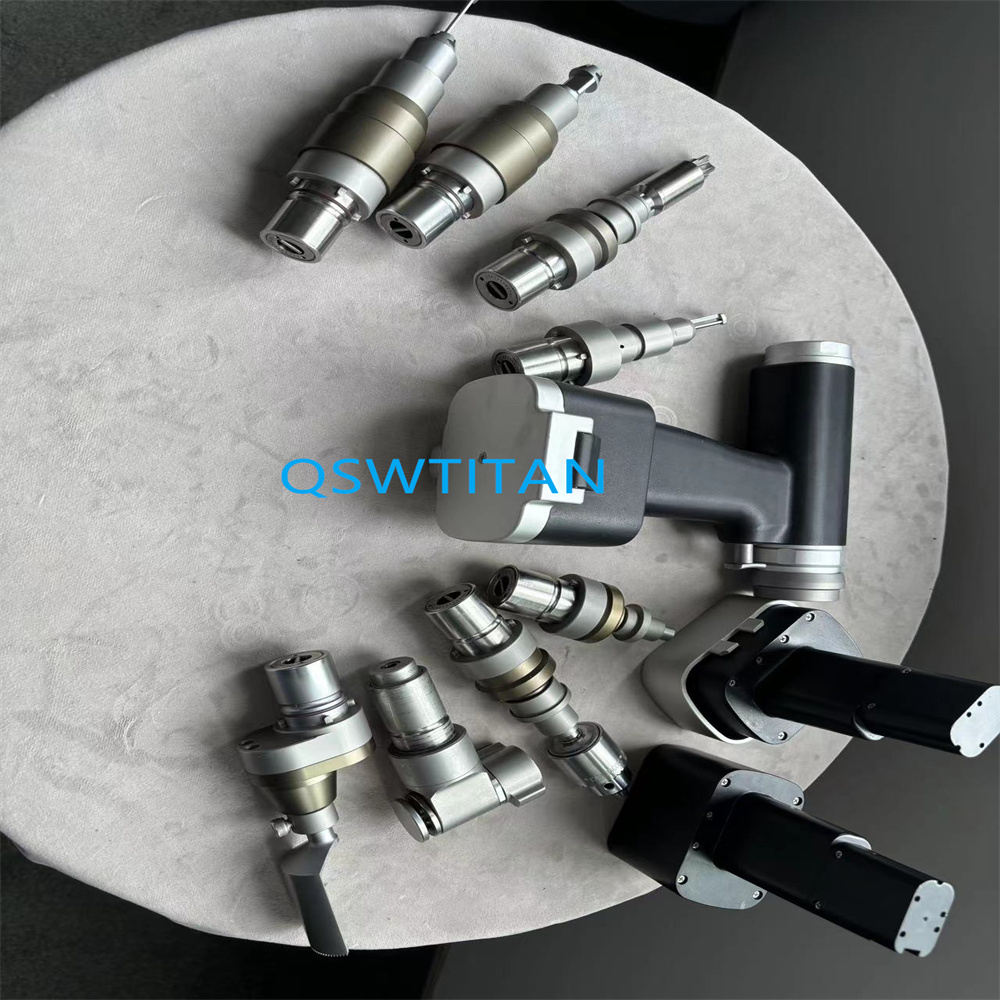

Surgical Bone Drill Component 6

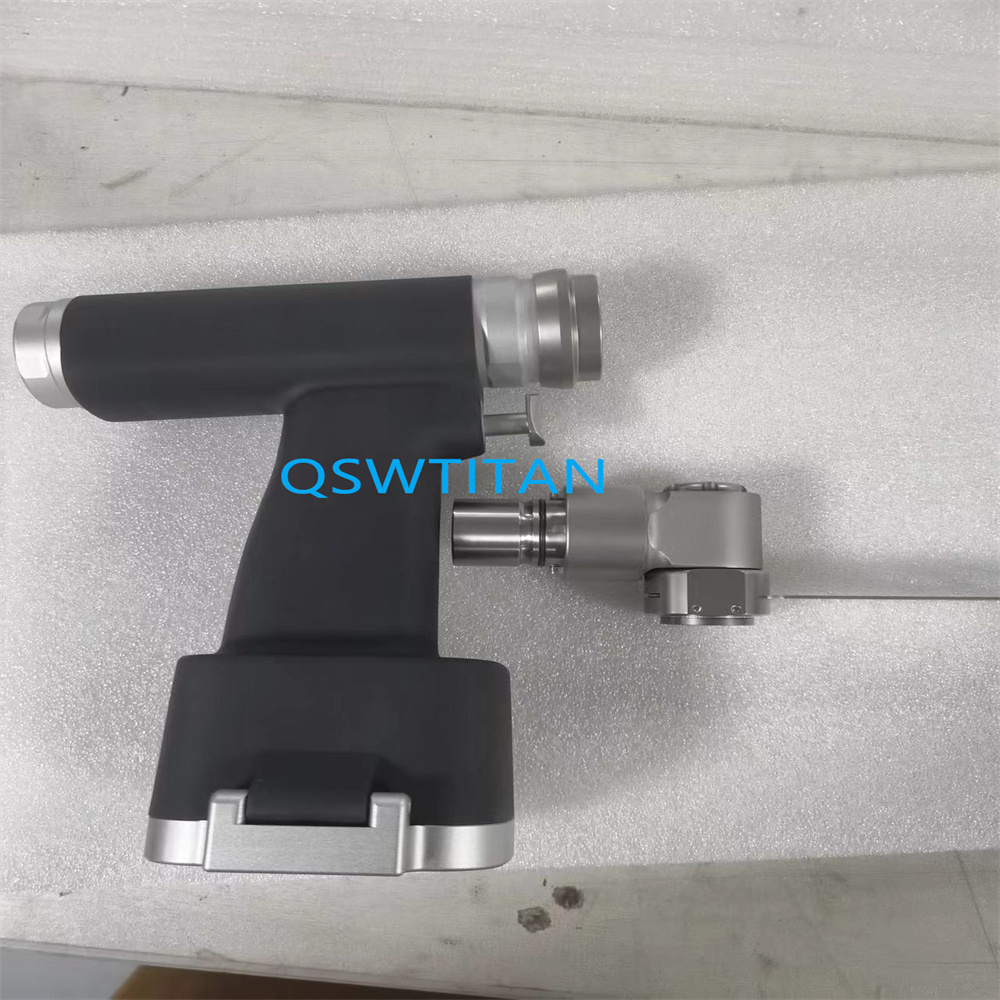

Surgical Bone Drill Component 7
Two choices: with aluminum box or with sterilized box, please choose before ordering, thank you!

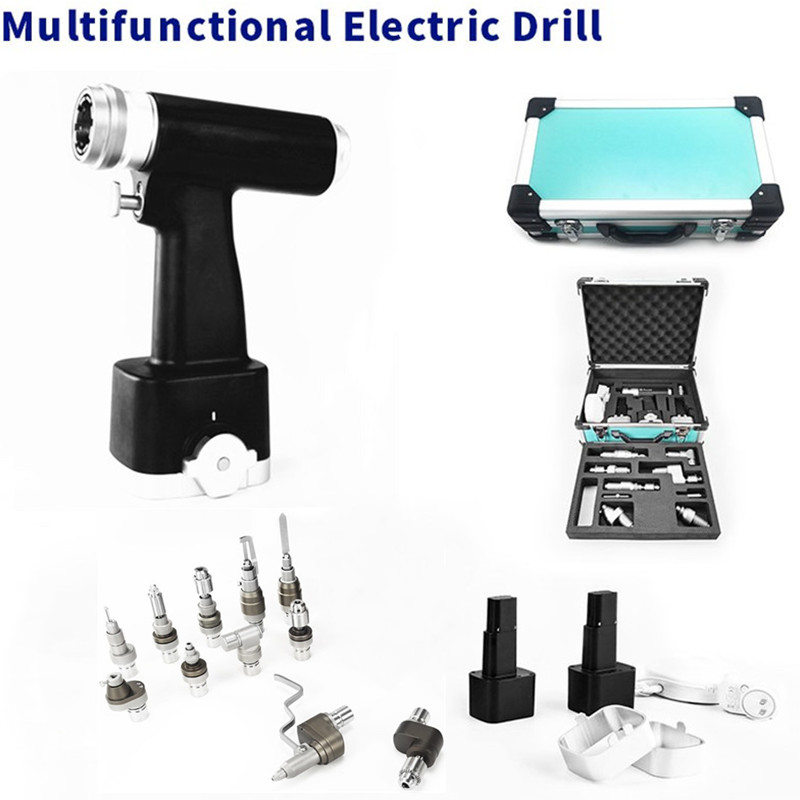

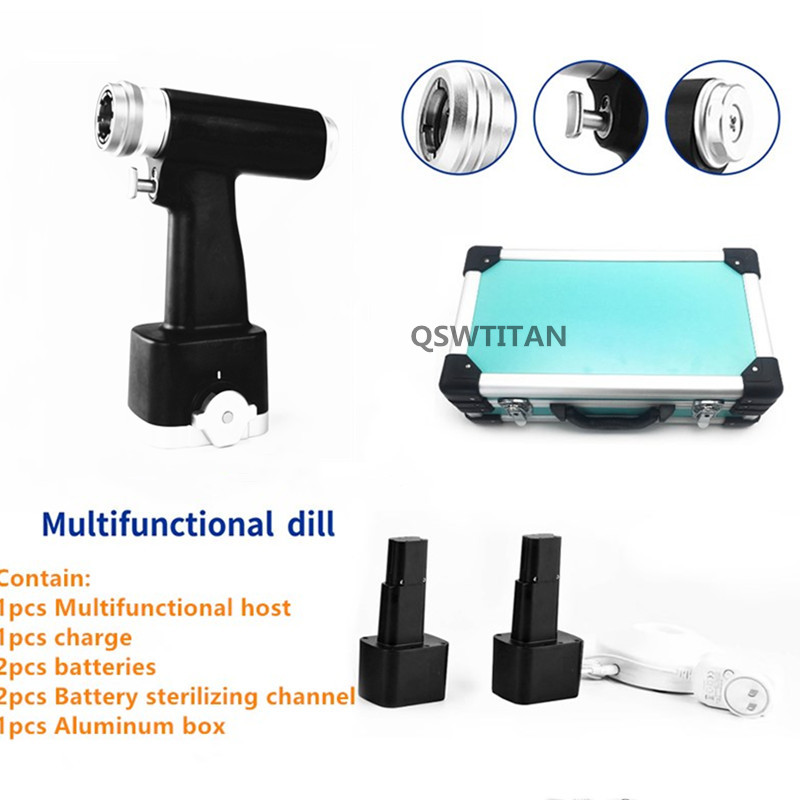

With aluminum case

With aluminum case

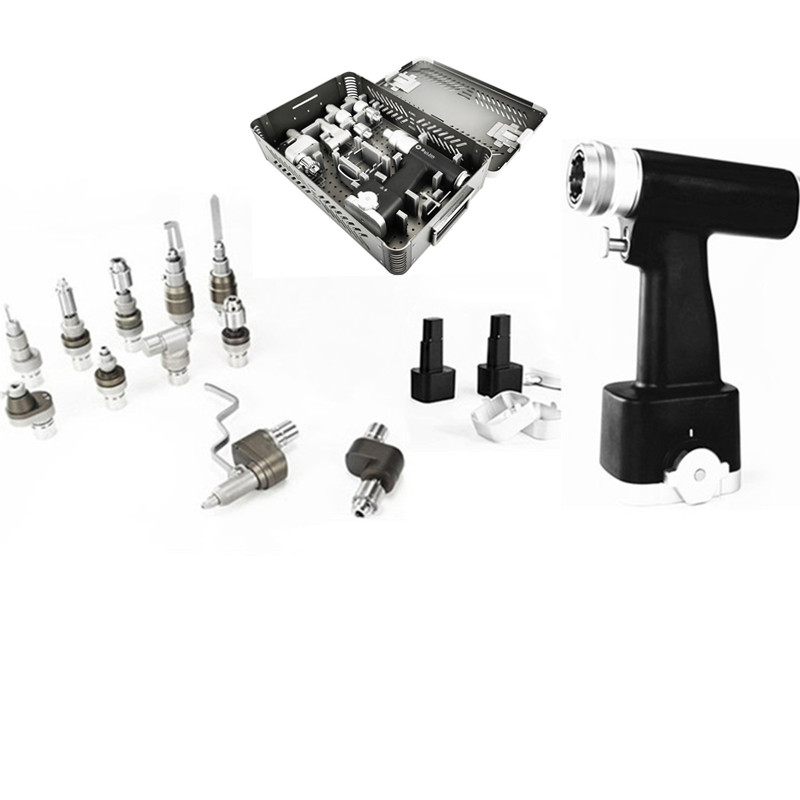

With sterilizer box

With sterilizer box

Scenes
Surgical Bone Drill Clinical Scene
Manufacturing & Quality Control
Manufacturing Scene 1

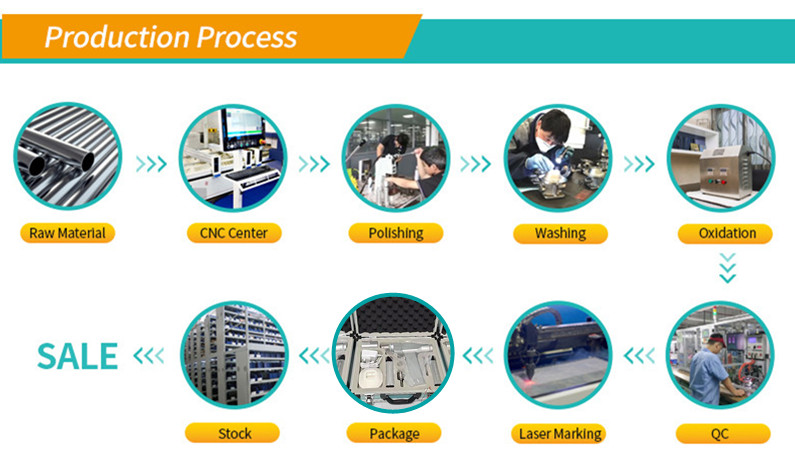

Manufacturing Scene 2
Manufacturing Scene 3
Manufacturing Scene 4
Manufacturing Scene 5

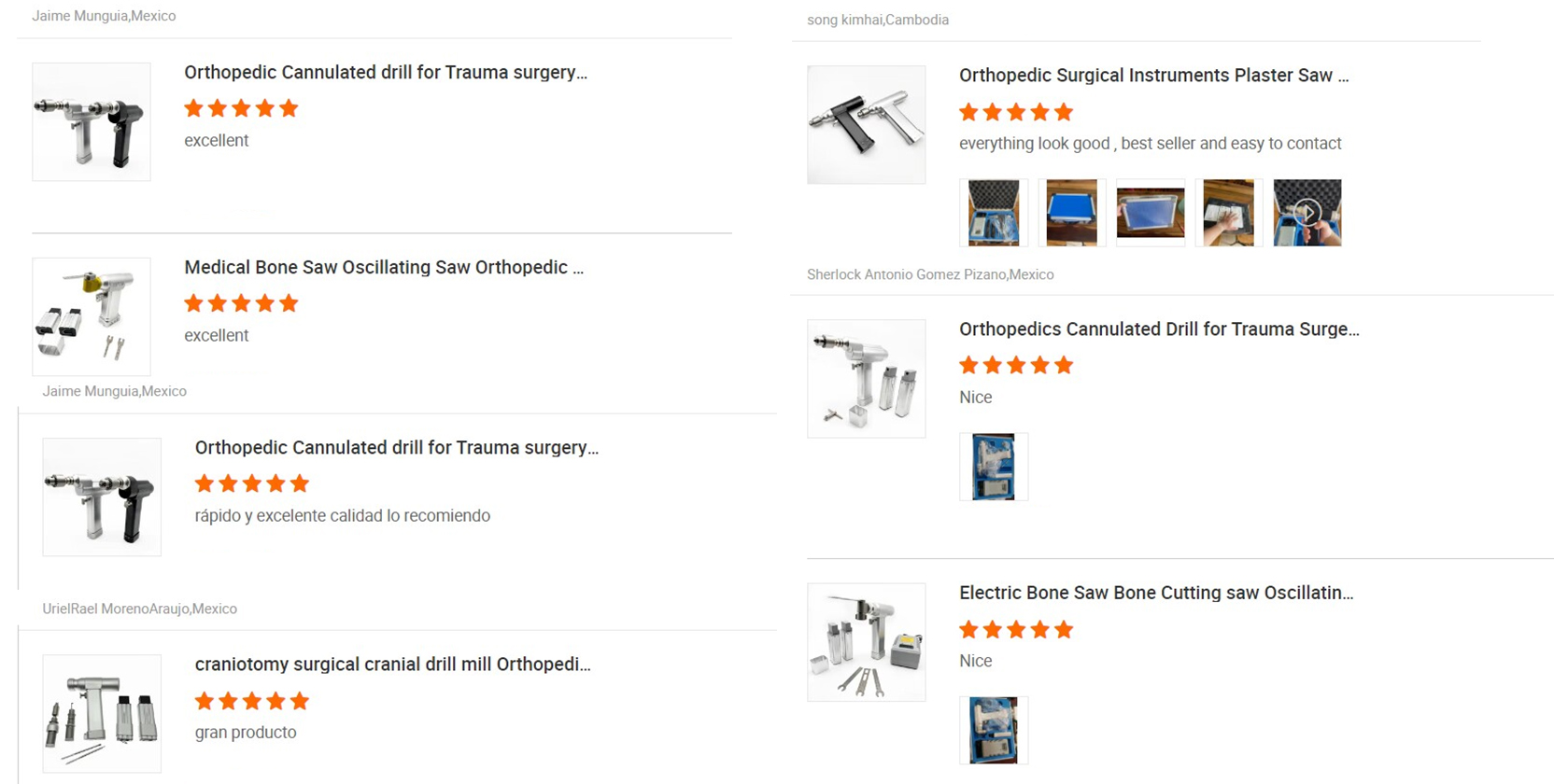

Manufacturing Scene 6
Manufacturing Scene 7
Manufacturing Scene 8
Manufacturing Diagram
Frequently Asked Questions
What is the primary material of the surgical bone drill?
The main frame is made of high-quality Stainless Steel and Aluminum Alloy, ensuring durability, longevity, and reliable performance during clinical operations.
Does the bone drill package include power adapters?
No, please note that power adapters are not included in the standard ordering package and must be purchased or prepared separately.
What certifications does this medical bone drill system hold?
This orthopedic surgical instrument system is fully CE, ISO, and SGS approved, complying with rigorous global medical equipment standards.
How do the different speed ranges benefit surgical operations?
The multi-functional system offers specialized speed limits for safety: bone drill (0-1300 r/min), cannulated drill (0-600 r/min), craniotomy drill (0-900 r/min), and oscillating saw (0-18000 osc/min) to meet diverse surgical requirements.
What packaging container options can I select?
We offer two primary options for instrument protection: a robust aluminum case or a specialized sterilizer box. Please specify your preference before ordering.
Does the oscillating saw protect surrounding soft tissue during sternum cuts?
Yes, the sternum saw is designed with a 360-degree rotating head and protective blade guards to ensure soft tissue safety while operating.
